M-Bus Solutions

With the M-Bus level converters from the MPW or MPW-IP series from STV Electronic, you can easily, safely and powerfully connect your controller, such as the Smart Manager 4.0 for energy data acquisition and control, to your M-Bus network,

Our level converters connect the meter data of your sensors and also the control of your actuators in the M-Bus network via the Ethernet interface and optionally via an additional serial interface (RS-232 or RS-485).

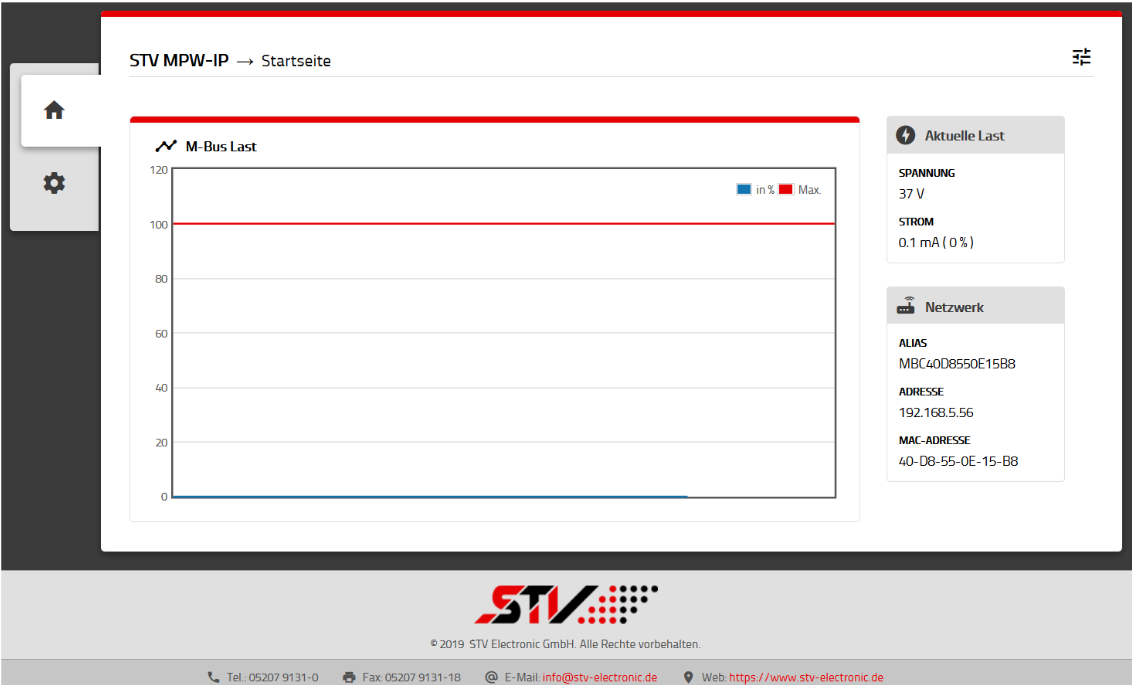

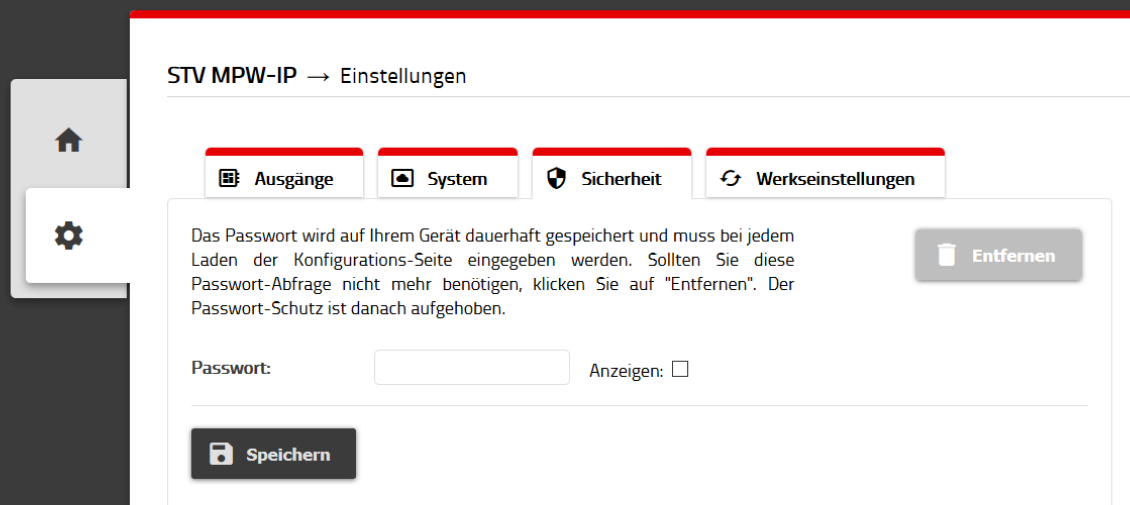

The parameters are set on the integrated website. If desired, this can be password-protected against unauthorized changes.

Produktbild Pegelwandler MPW-IP

MGW series gateways (M-Bus to Modbus TCP/RTU or Bacnet IP)

  • M-Bus Gateway MGW-32 Modbus IP/RTU
    • M-Bus Gateway MGW-32 Modbus IP/RTU
    • M-Bus Gateway MGW-32 Modbus IP/RTU

    • The Modbus gateway collects data from M-Bus terminals and converts theM-Bus data into a Modbus format.The Ethernet IP interface can easily be used as a Modbus TCP interface.The device also has an RS485 interface for the use of the RTU/ASCIIprotocol. Various Modbus master tools can be used to query the data.The integrated web server offers the option of easily configuring…
  • M-Bus Gateway MGW-32 Bacnet IP
    • M-Bus Gateway MGW-32 Bacnet IP
    • M-Bus Gateway MGW-32 Bacnet IP

    • The Bacnet Gateway collects data from M-Bus devices and converts the M-Bus data into Bacnet objects.The integrated web server offers easy configuration of the device. The datafrom M-Bus end devices can be viewed directly with a free web browser.The Ethernet interface can easily be used as a Bacnet IP interface. Bacnetobjects can be integrated with a Bacnet Explorer.The unit supports…
  • M-Bus Gateway MGW-64 Modbus IP/RTU
    • M-Bus Gateway MGW-64 Modbus IP/RTU
    • M-Bus Gateway MGW-64 Modbus IP/RTU

    • The Modbus gateway collects data from M-Bus terminals and converts theM-Bus data into a Modbus format.The Ethernet IP interface can easily be used as a Modbus TCP interface.The device also has an RS485 interface for the use of the RTU/ASCIIprotocol. Various Modbus master tools can be used to query the data.The integrated web server offers the option of easily configuring…
  • M-Bus Gateway MGW-64 Bacnet IP
    • M-Bus Gateway MGW-64 Bacnet IP
    • M-Bus Gateway MGW-64 Bacnet IP

    • The Bacnet Gateway collects data from M-Bus devices and converts the M-Bus data into Bacnet objects.The integrated web server offers easy configuration of the device. The datafrom M-Bus end devices can be viewed directly with a free web browser.The Ethernet interface can easily be used as a Bacnet IP interface. Bacnetobjects can be integrated with a Bacnet Explorer.The unit supports…

MPW series level converters

  • M-Bus USB-level converter MPW32-USBM-Bus USB-level converter MPW32-USB
    • M-Bus USB-level converter MPW32-USBM-Bus USB-level converter MPW32-USB
    • M-Bus USB-level converter MPW32-USB

    • With the M-Bus level converters from the MPW-IP series from STV Electronic, you can easily, safely and efficiently connect your controller, such as the Smart Manager 4.0 for energy data acquisition and control, to your M-Bus network. Our level converters connect the meter data from your sensors and also the control of your actuators in the M-Bus network via the…
  • M-Bus USB-Level converter MPW64-USBM-Bus USB-Level converter MPW64-USB
    • M-Bus USB-Level converter MPW64-USBM-Bus USB-Level converter MPW64-USB
    • M-Bus USB-Level converter MPW64-USB

    • With the M-Bus level converters from the MPW-IP series from STV Electronic, you can easily, safely and efficiently connect your controller, such as the Smart Manager 4.0 for energy data acquisition and control, to your M-Bus network. Our level converters connect the meter data from your sensors and also the control of your actuators in the M-Bus network via the…
  • M-Bus USB-Level converter MPW128-USBM-Bus USB-Level converter MPW128-USB
    • M-Bus USB-Level converter MPW128-USBM-Bus USB-Level converter MPW128-USB
    • M-Bus USB-Level converter MPW128-USB

    • With the M-Bus level converters from the MPW-IP series from STV Electronic, you can easily, safely and efficiently connect your controller, such as the Smart Manager 4.0 for energy data acquisition and control, to your M-Bus network. Our level converters connect the meter data from your sensors and also the control of your actuators in the M-Bus network via the…
  • M-Bus Level converter MPW16M-Bus Level converter MPW16
    • M-Bus Level converter MPW16M-Bus Level converter MPW16
    • M-Bus Level converter MPW16

    • With the M-Bus level converters from the MPW series from STV Electronic, you can easily, safely and efficiently connect your controller, such as the Smart Manager 4.0 for energy data acquisition and control, to your M-Bus network. Our level converters connect the meter data from your sensors and also the control of your actuators in the M-Bus network via various…
  • M-Bus level converter MPW64 with serial interfaceM-Bus level converter MPW64 with serial interface
    • M-Bus level converter MPW64 with serial interfaceM-Bus level converter MPW64 with serial interface
    • M-Bus level converter MPW64 with serial interface

    • With the M-Bus level converters from the MPW series from STV Electronic, you can easily, safely and efficiently connect your controller, such as the Smart Manager 4.0 for energy data acquisition and control, to your M-Bus network. Our level converters connect the meter data from your sensors and also the control of your actuators in the M-Bus network via various…
  • M-Bus level converter MPW128 with serial interfaceM-Bus level converter MPW128 with serial interface
    • M-Bus level converter MPW128 with serial interfaceM-Bus level converter MPW128 with serial interface
    • M-Bus level converter MPW128 with serial interface

    • With the M-Bus level converters from the MPW series from STV Electronic, you can easily, safely and efficiently connect your controller, such as the Smart Manager 4.0 for energy data acquisition and control, to your M-Bus network. Our level converters connect the meter data from your sensors and also the control of your actuators in the M-Bus network via various…
  • M-Bus level converter MPW6 with serial interface
    • M-Bus level converter MPW6 with serial interface
    • M-Bus level converter MPW6 with serial interface

    • With the M-Bus level converters from the MPW-IP series from STV Electronic, you can easily, safely and efficiently connect your controller, such as the Smart Manager 4.0 for energy data acquisition and control, to your M-Bus network. Our level converters connect the meter data from your sensors and also the control of your actuators in the M-Bus network via the…
  • M-Bus level converter MPW32 with serial interfaceM-Bus level converter MPW32 with serial interface
    • M-Bus level converter MPW32 with serial interfaceM-Bus level converter MPW32 with serial interface
    • M-Bus level converter MPW32 with serial interface

    • With the M-Bus level converters from the MPW series from STV Electronic, you can easily, safely and efficiently connect your controller, such as the Smart Manager 4.0 for energy data acquisition and control, to your M-Bus network. Our level converters connect the meter data from your sensors and also the control of your actuators in the M-Bus network via various…
  • Placeholder Image
    • Placeholder Image
    • Level converter with RS-232 interface, MPW32-RS-232

    • The level converter MPW32 RS-232 offers high flexibility and easyintegration in one device.The MPW32 RS-232 level converter is equipped with an RS-232 interface.The high M-Bus voltage of 38V makes it possible to operate large M-Busnetworks safely.With M-Bus transmission rates of 300 to 38400 baud, these levelconverters are also suitable for fast M-Bus devices.The device can be used in applications ranging…

MPW-IP-series level converters

  • M-Bus IP-level converter MPW64-IPM-Bus IP-level converter MPW64-IP
    • M-Bus IP-level converter MPW64-IPM-Bus IP-level converter MPW64-IP
    • M-Bus IP-level converter MPW64-IP

    • With the M-Bus level converters from the MPW-IP series from STV Electronic, you can easily, safely and efficiently connect your controller, such as the Smart Manager 4.0 for energy data acquisition and control, to your M-Bus network. Our level converters connect the meter data from your sensors and also the control of your actuators in the M-Bus network via the…
  • M-Bus IP-Level converter MPW128-IPM-Bus IP-Level converter MPW128-IP
    • M-Bus IP-Level converter MPW128-IPM-Bus IP-Level converter MPW128-IP
    • M-Bus IP-Level converter MPW128-IP

    • With the M-Bus level converters from the MPW-IP series from STV Electronic, you can easily, safely and efficiently connect your controller, such as the Smart Manager 4.0 for energy data acquisition and control, to your M-Bus network. Our level converters connect the meter data from your sensors and also the control of your actuators in the M-Bus network via the…
  • M-Bus IP-Level converter MPW32-IPM-Bus IP-Level converter MPW32-IP
    • M-Bus IP-Level converter MPW32-IPM-Bus IP-Level converter MPW32-IP
    • M-Bus IP-Level converter MPW32-IP

    • With the M-Bus level converters from the MPW-IP series from STV Electronic, you can easily, safely and efficiently connect your controller, such as the Smart Manager 4.0 for energy data acquisition and control, to your M-Bus network. Our level converters connect the meter data from your sensors and also the control of your actuators in the M-Bus network via the…

M-Bus splitter

  • MSP-64 M-Bus Splitter IP
    • MSP-64 M-Bus Splitter IP
    • MSP-64 M-Bus Splitter IP

    • The splitter collects data from M-Bus terminals and makes the M-Bus dataavailable at three different interfaces.The first interface (M-Bus IN) works like an M-Bus terminal device and canthus be connected to an M-Bus master. The second interface (RS232 IN)also makes the M-Bus data available.The interface (Ethernet IP) also provides the M-Bus data.The integrated web server offers the possibility of directly…
  • MSP-32 M-Bus Splitter IPMSP-32 M-Bus Splitter IP
    • MSP-32 M-Bus Splitter IPMSP-32 M-Bus Splitter IP
    • MSP-32 M-Bus Splitter IP

    • The splitter collects data from M-Bus terminals and makes the M-Bus dataavailable at three different interfaces.The first interface (M-Bus IN) works like an M-Bus terminal device and canthus be connected to an M-Bus master. The second interface (RS232 IN)also makes the M-Bus data available.The interface (Ethernet IP) also provides the M-Bus data.The integrated web server offers the possibility of directly…

What is special about our devices?

The devices have a narrow width. With a width of only 1DU, the MPW2 offers you the option of integrating up to two standard loads (1.5 mA each) into your control system. The MPW6 creates a maximum of 6 standard loads with a width of only 2TE, the MPW16 only requires a width of 3TE for 16 standard loads. All larger devices up to 128 standard loads are only 4HP wide.

All devices are characterized by simple commissioning. Devices with a serial interface (RS-232, RS-485 or USB) do not require any parameterization. The devices with an IP interface support IPv4 and IPv6 as well as MQTT and have a simple parameterization interface with additional diagnostic functions. They can also be parameterized remotely. You can find more information on this in the operating instructions in our downloads.

The high M-Bus voltage of 37-40 V enables large M-Bus networks to be operated safely. The intelligent controller takes over the management itself.
With M-Bus transmission rates from 300 to 38400 baud, the level converters are also suitable for fast M-Bus devices.

So you have the full control about your energy management and your resource consumption at all times and operate your production plants and buildings efficiently, even remotely.
