€426,34 zzgl. Mwst.
Nicht vorrätig

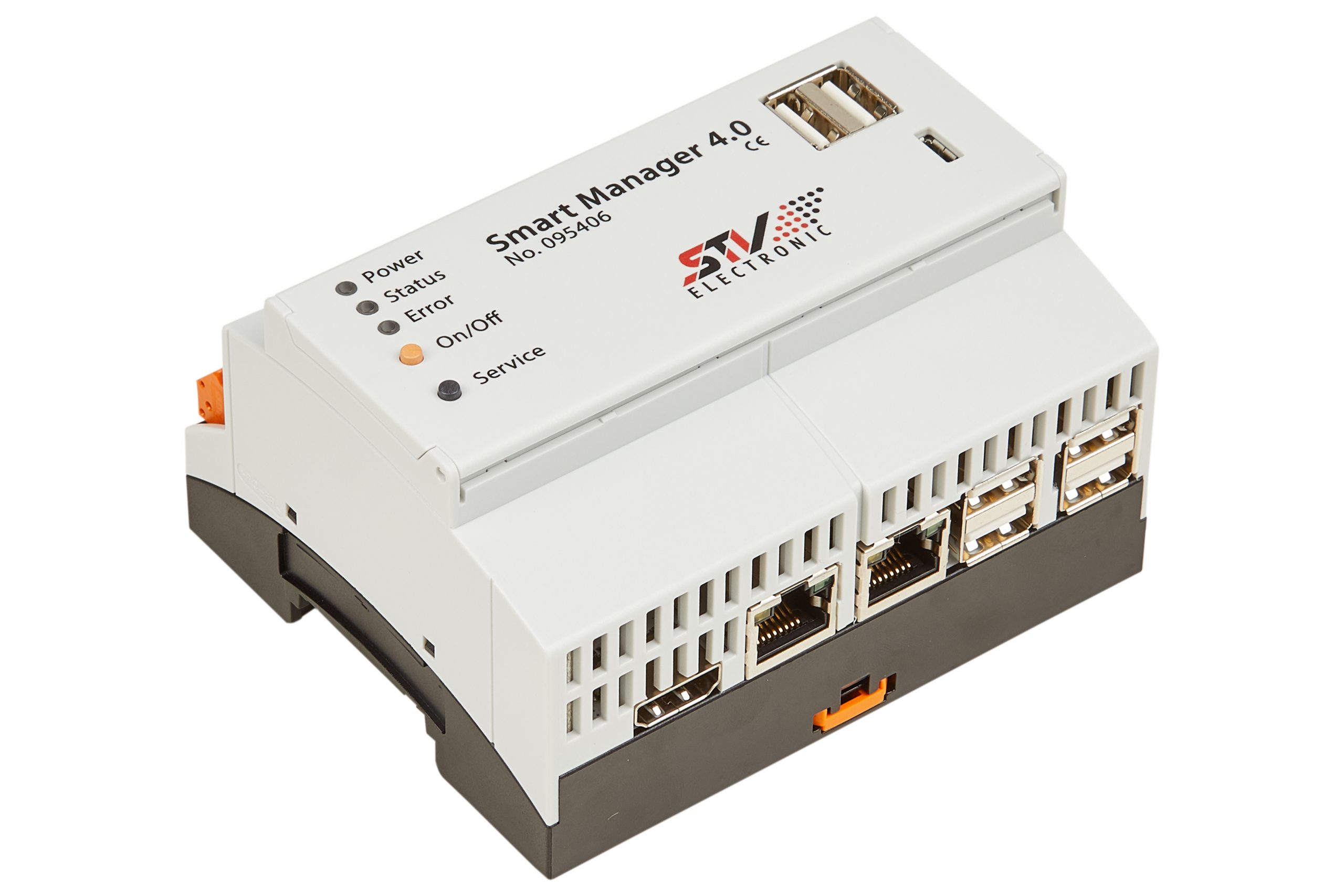

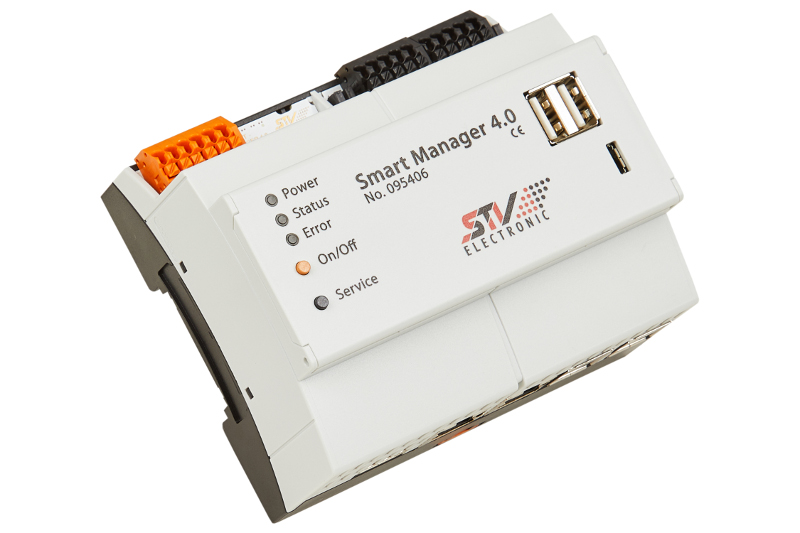

Linux™ Embedded PC-Controller
095421 | 16 GB Flash-Speicher

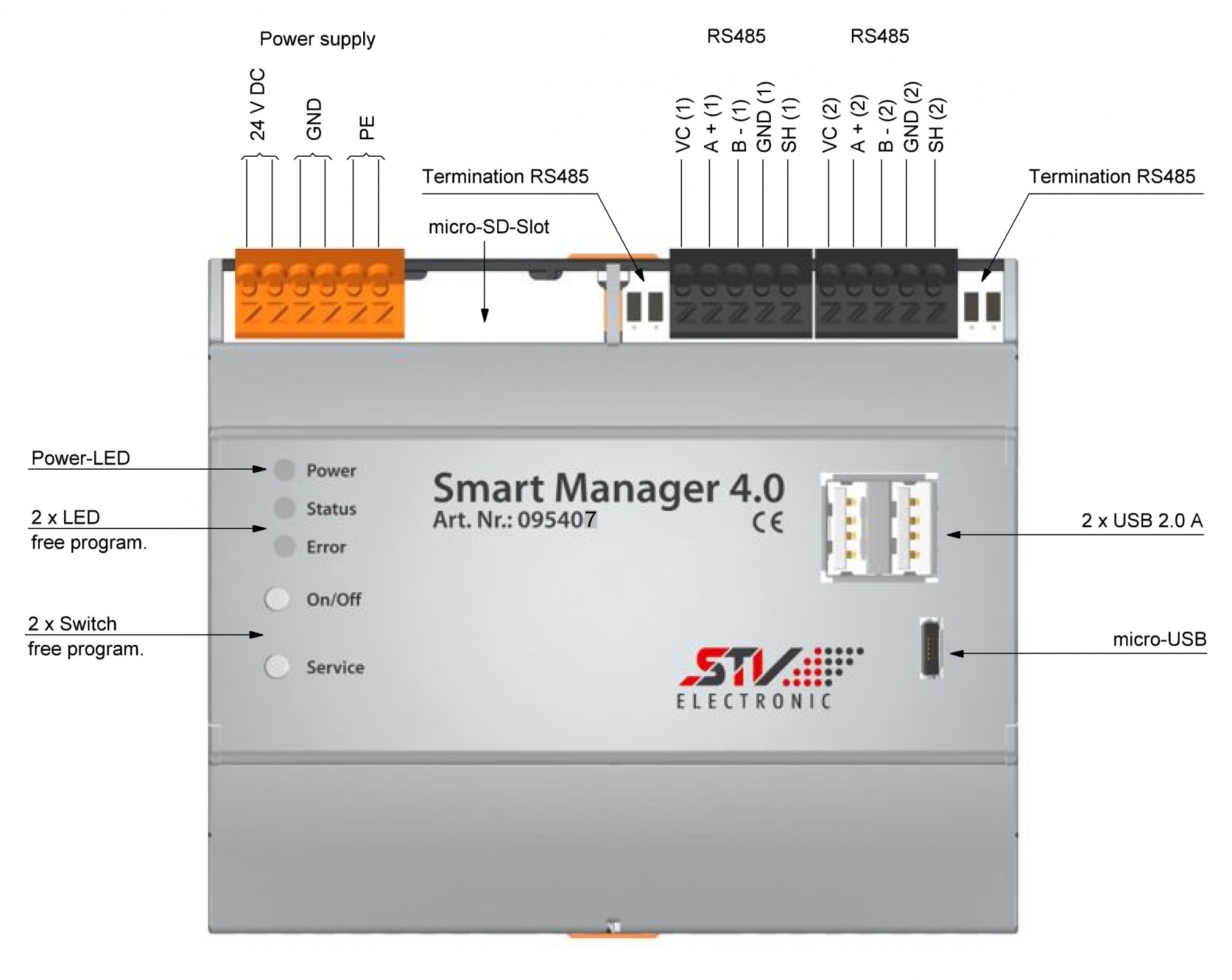

Schnittstellenübersicht :
Nicht vorrätig
| Gewicht | 0,218 kg |
|---|---|
| Größe | 8,97 × 10,8 × 6,22 cm |
| Power supply | min. 12 V – max. 30 V DC |
| Power consumption | 25 Watt (inkl. 6 x 500 mA at each USB-Port) |
| Operating temperature | -40°C bis +55°C |
| Storage temperature | -40°C to +65C° |
| Interfaces | 6 x USB 2.0 A, 1 x Micro-USB 1 x HDMI V1.3a 2 x RJ45 (Ethernet) 10/100 Mbit/s 1 x RS-485, isolated, individually terminable 1 x RS-485 or RS-232 switschable via software 1 x expansion bus with 3 x UART, 1 x I2C |
| Processor | 1,2 GHz, Quad-Core 64-bit |
| RAM | 1 GByte |
| Flash | 16 GByte |
| Certificates | IEC 61000-6-2, EN55032m EN55024 |
| Buffer time RTC | min 24 hours |
| Optical displays/keys | 2 Status LEDs freely programmable, 2 Keys freely programmable |
| Operating system | Debian Linux |
