Narrowband Powerline (NB-PLC) components

STV offers you a variety of components for secure powerline communication.

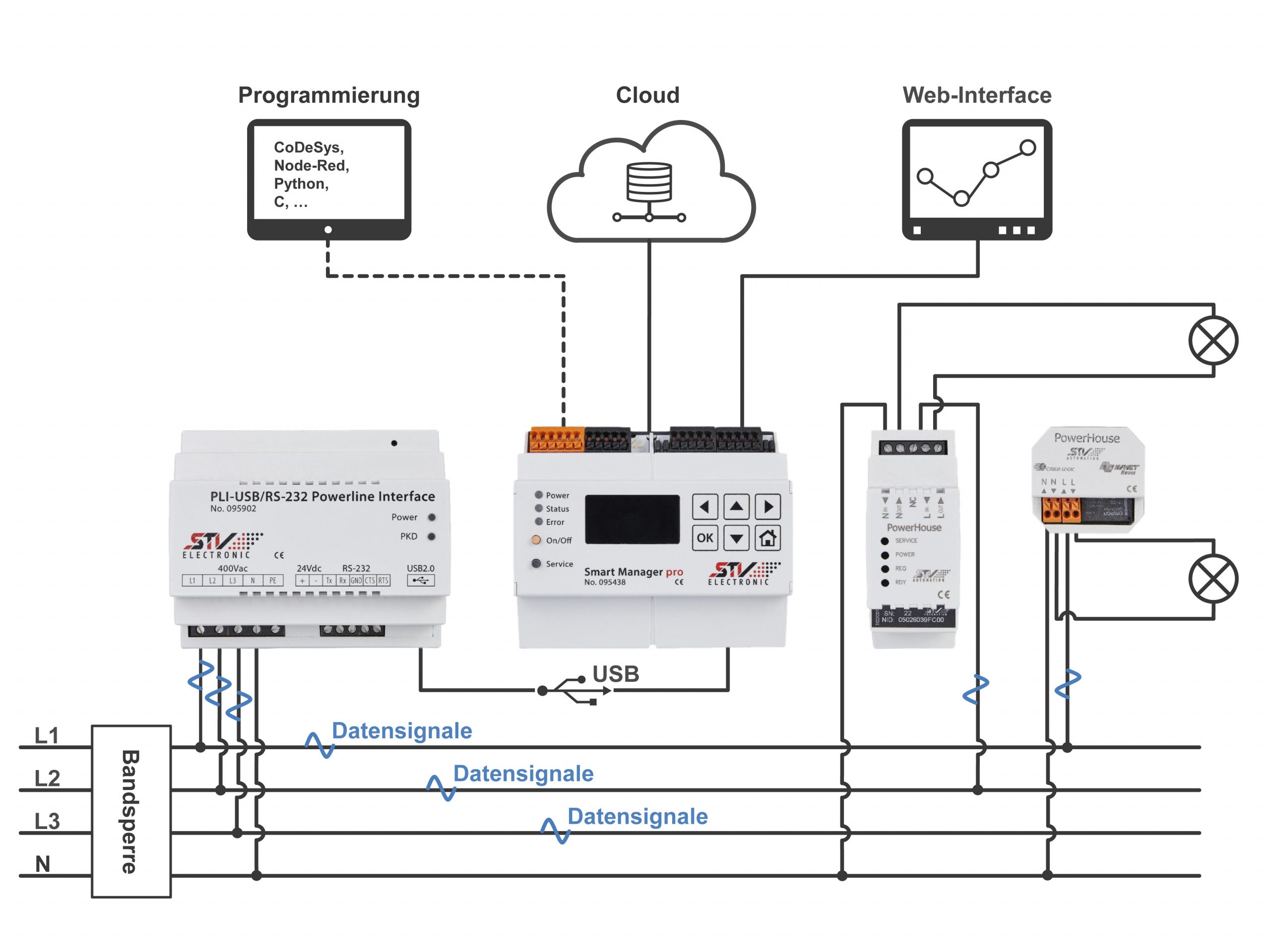

Using NB-Powerline, information can be transmitted via the power grid without additional cable laying. The data rates available from 1 kbit/s to 100 kbit/s are ideal for telemetry data transmission. NB-Powerline uses a bandwith below 148.5 kHz according to the CENELEC specification.


You will find bandstop filters to separate signals from different communication groups, phase couplers to transmit the signals throughout the home network and line filters to improve data transmission.

We are happy to help you choose the right components.

Product overview

  • Bandstop filter FF 01
    • Bandstop filter FF 01

    • Bandstop filter FF 01

    • Bandstop filter FF 01 (Art. No. 095025) Bandstop to secure data transmission in powerline networks. Mains voltage 230Vac Mains frequency 50Hz Rated current max. 63A Connection phase max. 25 mm² Connection neutral conductor max. 2.5 mm² Degree of protection IP20 Ambient temperature -5 ... 45°C Dimensions: 2.5 HP (45 x 90 x 66 mm)   Data sheet
  • PowerHouse for DIN rail mounting
    • PowerHouse for DIN rail mounting

    • PowerHouse for DIN rail mounting

    • PowerHouse TR (Art. No. 095261) The PowerHouse TR is a single phase electricity meter with switching function. Communication takes place via LON Powerline via the existing power supply. The necessary LON files can be found in the "Downloads" area Mains voltage 230Vac Mains frequency 50Hz Rated current 10(16A) Connection phase max. 2.5 mm² Connection neutral conductor max. 2.5 mm² Degree…
  • PowerHouse for flush mounting
    • PowerHouse for flush mounting

    • PowerHouse for flush mounting

    • PowerHouse UP (Art. No. 095260) The PowerHouse UP is a single-phase electricity meter with switching function. Communication takes place via LON Powerline via the existing power supply. The necessary LON files can be found in the "Downloads" area Mains voltage 230Vac Mains frequency 50Hz Rated current 10A Connection phase max. 2.5 mm² Connection neutral conductor max. 2.5 mm² Degree of…
  • Phase coupler
    • Phase coupler

    • Phase coupler

    • Phase coupler (Art. No. 095029) 3-phase coupler for coupling the Powerline signal into the 230V mains. Requires the Smart Manager extension LONPLT as an add-on. Power supply 230Vac Mains frequency 50Hz Connection terminals 2.5 mm² Operating temperature 0 ... 55°C Degree of protection IP20 Dimensions 2 HP (36 x 90 x 64 mm)   Data sheet
  • Line filter
    • Line filter

    • Line filter

    • Mains filter NF01 (Art. No. 095026) Mains filter for damping high-frequency interference signals in powerline networks Power supply 230Vac Mains frequency 50 Hz Attenuation 6dB Connection terminals 2.5 mm² Operating temperature 0 ... 55°C Degree of protection IP20 Dimensions 1HP (18 x 90 x 66 mm)   Data sheet

Individual service and advice

We will find the right solution for your requirement. Our experts support you in the development of your individual solution, in robot programming, software and hardware development as well as programming your PLC.

If you have any questions or need advice, please contact us!
